Vr6 turbo with Kdfi v1.4 PnP

[fredoux]

Hello,
First of all, excuse me in advance because I do not speak German and I block for several weeks on this problem.

I am contacting you for information on Kdfi equipment.

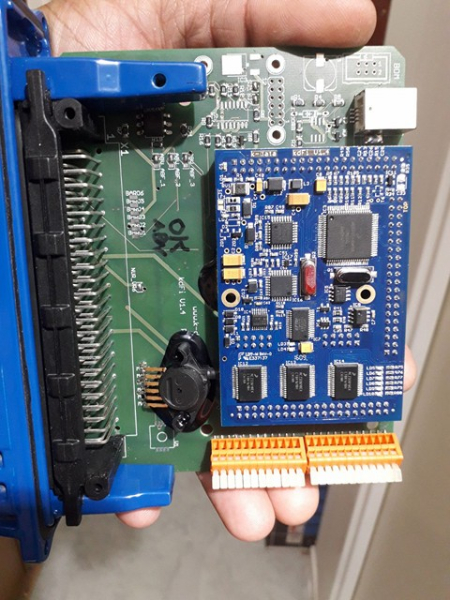

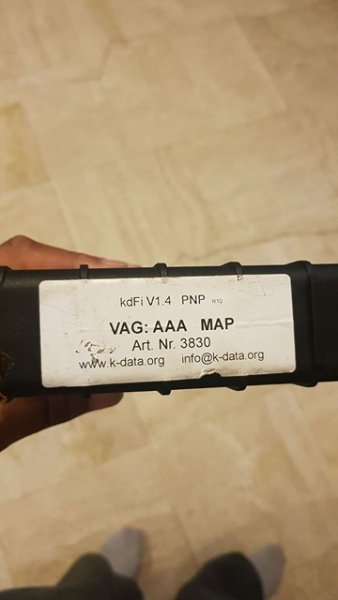

I bought a kdFi V1.4 PNP VW AAA calculator (VR6) but I have a problem to start the engine (Golf 3 vr6 turbo).

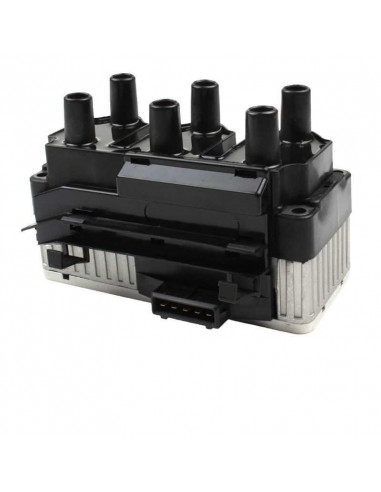

Indeed, I am in wasted spark like this :
http://www.strperformance.com/4625-larg ... 8l-29l.jpg

Does it work too or does it absolutely need the ABV kdfi?

With the original vr6 OEM calculator the car starts without problem so it is not a problem of setup.
The sensor Vr/hall is new (same pb)

Thanks for your support (in english please or i traduct with google).

[Dominik335i]

Which pattern does your trigger wheel have? The second peak indicates a second gap. Is it really a x-1-1 or a more conventional x-1 wheel?

Regards
Dominik

[fredoux]

I am on 02M (V6 4motion Gearbox golf 4) with Sachs Performance/Race clutch and Flywheel.
I hope you understand my setup

[Dominik335i]

Yes, but this does not answer my question Is it a 60-2, 36-1 or what ever trigger wheel? The tooth logger must correlate with the pattern.

In case of a 60-2 wheel it should look like this:



36-1

[fredoux]

Hello !

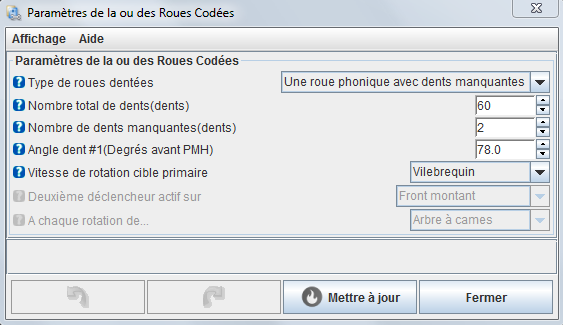

60-2

[Dominik335i]

Then you have to sort out your trigger issues! Is it a hall or vr sensor at the crank?

Btw.: The german translation is crap. I assume it's not very different with the french one Hence most people prefer the original english language version...

[fredoux]

No pb !
My engine sensor RPM : Bosch 0261 210 107

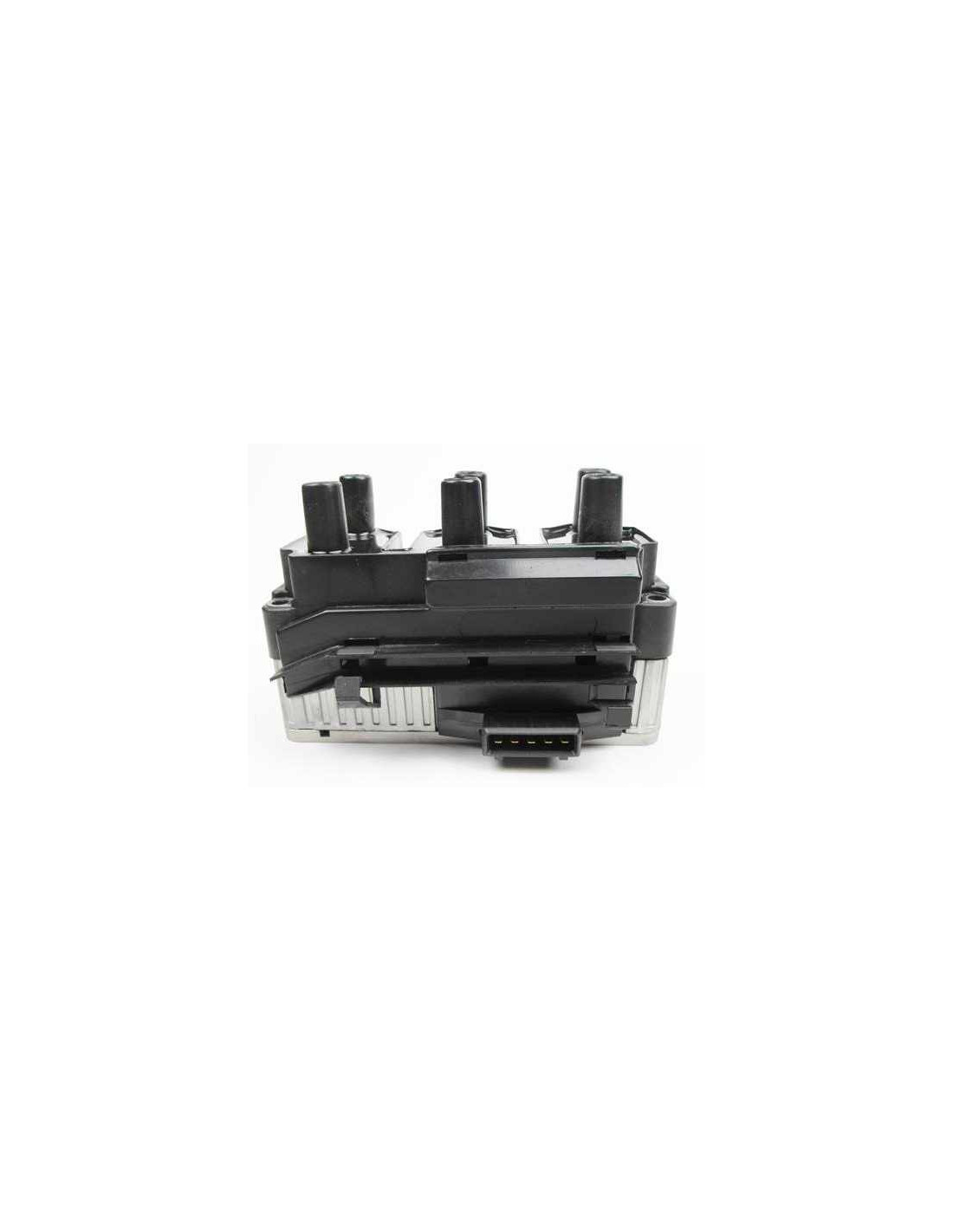

And this : http://www.strperformance.com/5715-thic ... 8l-29l.jpg

It's VR

Or can I find a startup file vr6 turbo turbo if I give you my configuration. The mappers do not arrive and maybe I can compare with a functional config

[Dominik335i]

It's essential to have a proper tooth logging. You have to sort out the trigger signal issue and clarify the reason for the second spike. Everything else is a waste of time.
Once you have a proper signal and everything is wired up correctly, the engine will start with no doubt after some tweaking...

[fredoux]

I searching why i dont have a good signal, is my question ..

[fredoux]

I will try to inverse VR+ and Vr- somebody has tested that ?

[Dominik335i]

Just try it Do you have access to an oscilloscope?

[fredoux]

I think i can to access why ?

[Dominik335i]

To check the "raw" signal of the VR sensor?!

[fredoux]

Ok i will try this.
Where can i found msq vr6 turbo who start the engine ?

[Acki]

Thats why k data production are not good.
Sold as plug and play (yes the connector fits - that’s all), no support nothing.

Read the MS manual please.
